Realistic Quantitative Structure Models • rTwig

Description

Real Twig is a method to correct unrealistic cylinders in quantitative structure models (QSMs), different than traditional allometric or statistical corrections. Small branch and twig cylinders are overestimated in QSMs due to technical limitations in current LiDAR sensor technology. Real Twig overcomes these limitations by using real and direct twig diameter measurements from corresponding tree species to inform individual path taper models in a QSM. Real Twig dynamically identifies realistic cylinders in a QSM using network analysis, general additive models, and direct twig measurements, to model and correct unrealistic cylinders with a high degree of precision and accuracy when vetted against ground truth reference data. The Real Twig method is presented here as the R package, rTwig.

rTwig includes a novel database of twig diameter measurements for many common North American and European trees, to make the method immediately accessible to the user. In addition, rTwig includes fast and efficient tools for QSM visualization and analysis that are seamlessly compatible with the R ecosystem, and for point cloud fractal analysis and visualization using the box-dimension metric.

Method

A complete description and validation of Real Twig can be read here:

Aidan Morales, and David W. MacFarlane. “Reducing tree volume overestimation in quantitative structure models using modeled branch topology and direct twig measurements.” Forestry: An International Journal of Forest Research, 2024, pp. 1-16. https://doi.org/10.1093/forestry/cpae046.

Features

Realistic Trees

The main goal of Real Twig was to correct volume overestimation in QSMs caused by the limitations of LiDAR sensors for better non-destructive above ground biomass (AGB) estimates. Real Twig incorporates direct twig measurement into the QSM, resulting in models that not only have accurate volume metrics, but are also visually realistic, independent of tree species or size. For example, shown below is a 300+ year old white oak tree (Quercus alba), with and without Real Twig.

Efficient Visualization

plot_qsm() can plot QSMs and point clouds, using rgl as the 3D display, and C++ via Rcpp to efficiently build the cylinders. The cylinders, simulated point cloud, and skeleton can all be plotted and colored by any variable or user supplied color palette. It can also visualize stem triangulation meshes from TreeQSM.

Detailed Tree Metrics

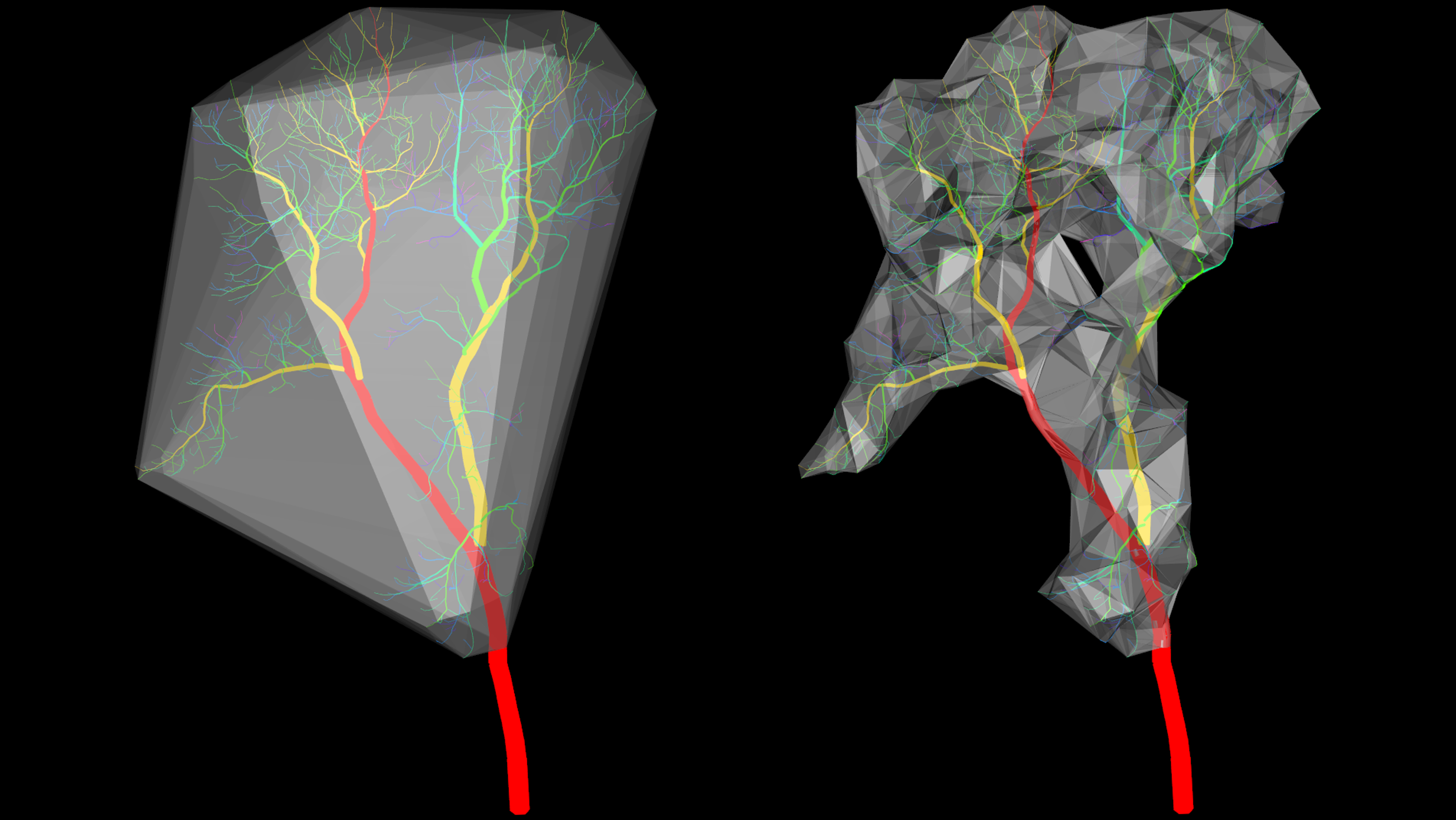

The goal of rTwig was to provide users with tools to visualize and analyze QSM metrics without being tied to any particular QSM software. To that end, standardize_qsm() provides a consistent naming convention between supported QSMs, making it easy to combine and analyze QSMs from different sources. tree_metrics() calculates all of the major QSM metrics between all supported software. prune_qsm() can virtually prune a tree using multiple input parameters. cluster_cloud() can transfer all QSM metrics directly onto an unorganized point cloud, or simulate a virtual point cloud. See the vignettes or function reference pages for more details.

Supported Software

rTwig currently supports TreeQSM, SimpleForest, Treegraph, and aRchi

Functions

run_rtwig() runs the Real Twig method on a QSM
import_qsm() imports a QSM created by TreeQSM (.mat)
import_treegraph() imports a QSM created by Treegraph (.json)
standardize_qsm() standardizes QSM variable names across supported software
update_cylinders() updates cylinder relationships and adds new QSM variables
correct_radii() models QSM paths and corrects cylinder radii
tree_metrics() generates detailed tree metrics and a simulated point cloud
cluster_cloud() transfers QSM variables to a point cloud or simulates a point cloud
qsm_summary() summarises QSM diameter, height, volume, and surface area
smooth_qsm() connects cylinder end-to-end to smooth branch visualization
plot_qsm() plots QSMs and optionally their point clouds
prune_qsm() prunes a QSM by cylinder attributes, height, or diameter classes
export_mesh() exports a QSM as a mesh object (.ply)
export_mat() exports a QSM in a MATLAB format (.mat)
box_dimension() calculates and visualizes the structural complexity of a point cloud

Installation

You can install the released version of rTwig from CRAN with:

install.packages("rTwig")

You can install the development version of rTwig from GitHub with:

# install.packages("devtools")
devtools::install_github("aidanmorales/rTwig")

Quick Start: Real Twig

Below are examples of how to quickly run and visualize Real Twig, using example data from the package. See the vignettes for more details on a general workflow and best practices.

TreeQSM

 # Load the Real Twig library
 library(rTwig)

 # File path to QSM
 file <- system.file("extdata/QSM.mat", package = "rTwig")

 # Correct QSM cylinders
 qsm <- run_rtwig(file, twig_radius = 4.23)

 # Plot the result
 plot_qsm(qsm$cylinder)

 # View detailed tree metrics
 qsm$metrics

SimpleForest

 # Load the Real Twig library
 library(rTwig)

 # File path to QSM
 file <- system.file("extdata/QSM.csv", package = "rTwig")

 # Correct QSM cylinders
 qsm <- run_rtwig(file, twig_radius = 4.23)

 # Plot the result
 plot_qsm(qsm$cylinder)

 # View detailed tree metrics
 qsm$metrics

Treegraph

 # Load the Real Twig library
 library(rTwig)

 # File path to QSM
 file <- "path_to_treegraph_json"

 # Correct QSM cylinders
 qsm <- run_rtwig(file, twig_radius = 4.23)

 # Plot the result
 plot_qsm(qsm$cylinder)

 # View detailed tree metrics
 qsm$metrics

aRchi

 # Load the Real Twig library
 library(rTwig)

 # File path to QSM
 file <- system.file("extdata/QSM2.csv", package = "rTwig")

 # Correct QSM cylinders
 qsm <- run_rtwig(file, twig_radius = 4.23)

 # Plot the result
 plot_qsm(qsm$cylinder)

 # View detailed tree metrics
 qsm$metrics

Quick Start: Fractal Analysis

rTwig also includes an efficient function written in C++ via Rcpp for fractal analysis using the voxel-counting method. Below is an example of how to quickly calculate box-dimension on a point cloud using example data from the package. See the vignette for more details and explanation.

# Load a point cloud
file <- system.file("extdata/cloud.txt", package = "rTwig")
cloud <- read.table(file)

# Calculate box-dimension
output <- box_dimension(cloud)
output[[2]]$slope
